SKU: UBSL-0266

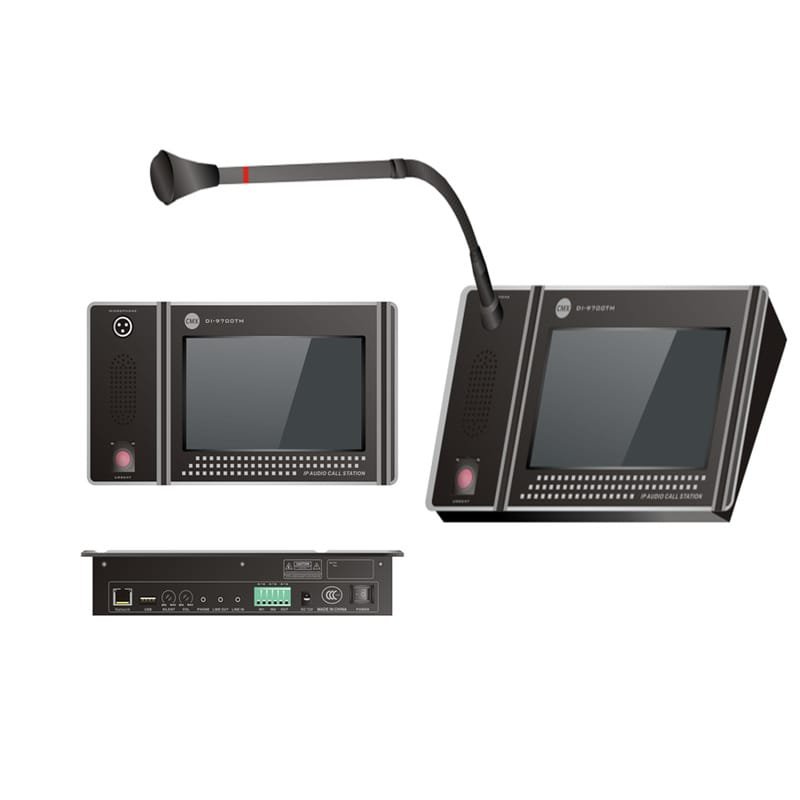

IP Network Remote Microphone (Touch Screen) DI-9700TM
Price
Call for Price
In Stock
Ready to ship
The DI-9700AM IP Network Paging Microphone IP paging console or IP call station is used to page over the network to speaker zones. This paging microphone could be installed anywhere on the LAN system. The IP network paging microphone has several paging modes including single-zone paging, multiple-zo...
Official
Warranty
Warranty
Fast
Delivery
Delivery
Technical Details
| Model | DI-9700TM |
| Description | IP Network Remote Microphone (Touch Screen) |
| Communication Protocol | TCP/IP, UDP, IGMP, ARP, UDP |
| Sampling Rate | 8K~48KHz |
| Transmission Speed | 10M/100 Mbps |
| Frequency Response | 100 Hz - 20 kHz |
| T.H.D. | < 1 % |
| S/N Ratio | 60 dB(A) |
| Connector | Audio output 0 dB V, 600 Ω, balanced Inputs 3.5 mm phone jack, for AUX (-20 dB V) or Mic (-40 dB V) |
| Humidity | 35 % to 80% |
| Power Consumption | ≤10W |
| Power Supply | 24 V DC (Operation range: 15 - 40 V DC) |
| Dimensions | 250x163 x42mm |
| Weight | 2.2Kg |
