Brand
SKU: UBSL-0105

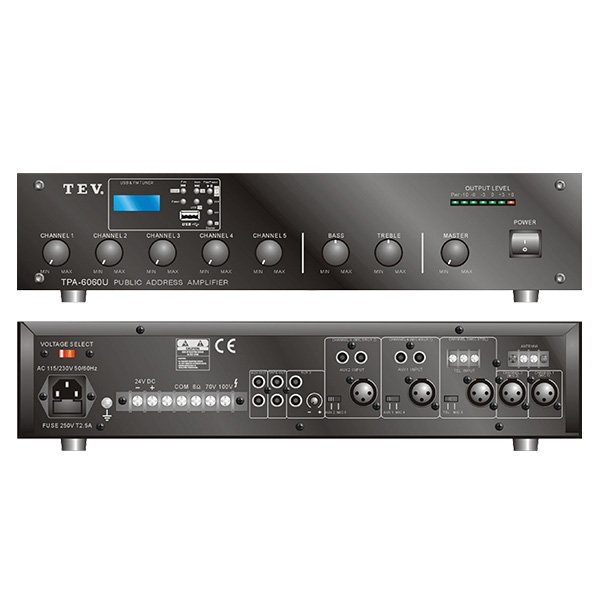

TEV TPA-6060U PA Amplifier (60W)
Price
৳ 20,400
In Stock
Ready to ship
The TEV TPA-6060U PA Amplifier is a powerful and versatile audio amplification solution designed for public address systems. With a robust power output of 60 watts, this amplifier is well-suited for various applications, including schools, conference rooms, places of worship, and other public spaces...
Official
Warranty
Warranty
Fast
Delivery
Delivery
Technical Details
| Function | Specification |
| Type | Mixer Amplifier |
| Power Supply | AC 115/230V 50/60Hz, DC 24V |
| Power Output | 60W RMS |
| Total Harmonic Distortion | < = 1 % @ 1 KHz |
| Sensitivity | XLR (Balanced) Channel 1 ~ 3 (Mic 1~3), 1 mV @ 600Ω Tel (Terminal), 100 mV @ 600Ω Channel 4 (Mic 4), 1 mV @ 600Ω AUX 1 (RCA), 100mV @ 22KΩ Channel 5 (Mic 5), 1 mV @ 600Ω AUX 2 (RCA), 100mV @ 22KΩ AUX 3 (RCA), 100mV @ 22KΩ Tape Out (RCA), AUX Out (RCA) 1V |
| Frequency Response | 50 HZ ~ 15 KHz ± 3dB |
| Output | 100V, 70V, 8Ω |
| Signal to Noise Ratio | 86 dB |
| Chime Input | Mic 5 |
| Voice Priority Mute | Mic 1 |
| Phantom Power Adjustable | Mic 1 ~ 5 (Default Off) |
| Tone | Bass 100Hz ±10dB Treble 10KHz ±10dB |
| Media Format | WMA, MP3 |
| Tuner Range | FM 87.5 ~ 108.0 MHz |
| Antenna Input | 75Ω |
| AC Power Consumption | 160W @ Rated Power |
| DC Power Consumption | 4A @ Rated Power |
| Dimension | 88×425×305 mm (H.W.D) |
| Weight | 8.2 KGS |
| Mounting | Free Standing or 19” Rack |
