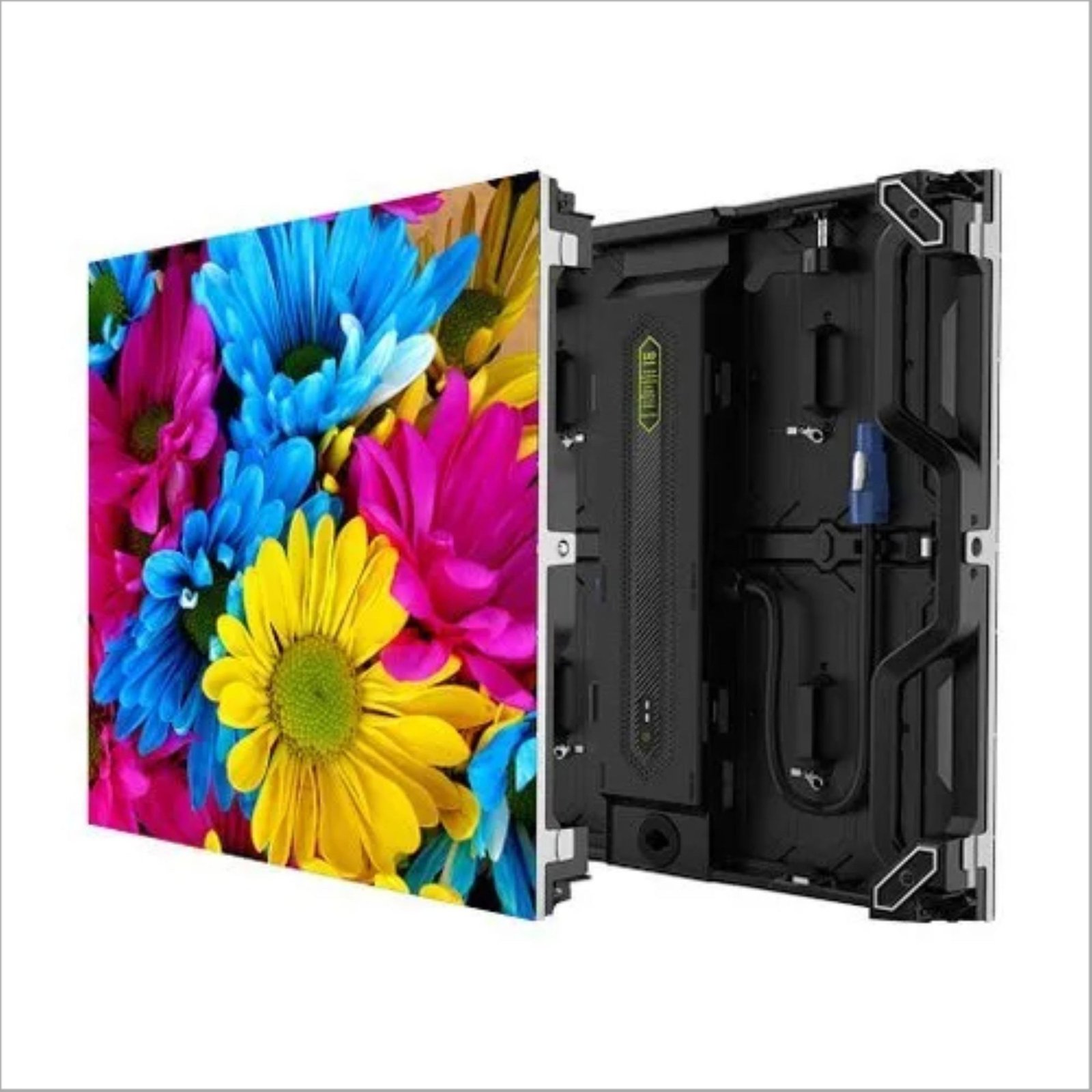

Armor P2.5 Indoor LED Video Wall
Price
Call for Price
In Stock
Ready to ship
Technical Parameters for P2.5 Indoor LED Video Wall Module Parameter Pixel pitch 2.5mm Pixel configuration 1R1G1B Module resolution 128*64 Pixel Density 160000 dots/m2 Module Dimension 320mm*160mm*15mm Cabinet Parameters(Optional) Cabinet size 640W(mm)x480H(mm) Cabinet Resolution(WXH) 320X240 Pixel....
Official
Warranty
Warranty
Fast
Delivery
Delivery
Technical Details
| Pixel pitch | 2.5mm |
| Pixel configuration | 1R1G1B |
| Module resolution | 128*64 |
| Pixel Density | 160000 dots/m2 |
| Module Dimension | 320mm*160mm*15mm |
| Cabinet size | 640W(mm)x480H(mm) |
| Cabinet Resolution(WXH) | 320X240 |
| Pixel Density | 160000 dots/m2 |
| Cabinet Construction | Die-casting aluminum/Iron |
| Weight | 6.5 kg/pcs |
| Maintenance | Front-Access |
| Cabinet Max Power Consumption | ≤140W |
| Pixel Pitch | 2.5mm |
| Brightness | ≥800 nits |
| Contrast Ratio | 5000:1 |
| Color temperature | 2000-9300 K |
| Processing Depth | 16 bit |
| Driving method | Constant Current Drive / 40 Scan |
| Refresh Rate | ≥3840Hz |
| Frame frequency | ≥60Hz |
| LED Life Time | 100,000 Hours |
| Input Voltage | AC 200-240V |
| Frequency | 47-63 (Hz) |
| Max. Input power | 400 watts |
| Typical Input Power | 120 watts |
| Viewing angle (H/V) | Horizontal: 160, Vertical:160 |
| Best Viewing Distance | ≥2.5m |
| Max Power Consumption | ≤550 W/m² |
| Average Power Consumption | ≤200w/㎡ |
| Loading capacity | 2.6 million pixels |
| Input | -1x HDMI 1.3 (IN & LOOP), 1x HDMI 1.3, 1x DVI (IN & LOOP), 1x 3G-SDI (IN & LOOP), 1x optical fiber port (OPT1) |
| Output | 4x Gigabit Ethernet ports, 2x Fiber outputs, Ethernet ports., 1x HDMI 1.3 |
| Computer System | WinXp/Vista/Win7/Win10/Win11 |
| Control Connectors | 1x Ethernet Port, 2x USB |
| Layers | 2 layers |
| Scaling Options | 3 scaling options are pixel-to-pixel, full screen and custom scaling |
| Presets | 10 Presets |
| Power Input | AC 200-240V |
