SKU: UBSL-0313

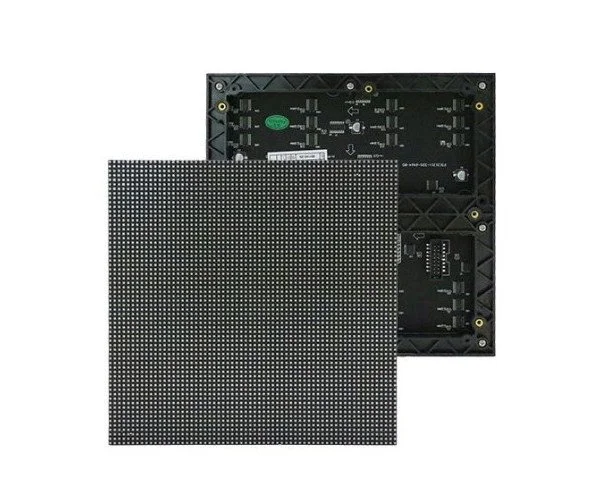

Armor P1.8 Indoor LED Video Wall
Price
Call for Price
In Stock
Ready to ship
Technical Parameters for Armor P1.8 Indoor LED Video Wall Model P1.8 Pixel pitch 1.8mm Pixel configuration 1R1G1B Module resolution 172*86 Pixel Density 288906Dot/㎡ Module Dimension 320mm*160mm*15mm Cabinet Parameters (Optional) Cabinet size 640W(mm)x480H(mm)/960mmx960mm Cabinet Resolution(WXH) 32...
Official
Warranty
Warranty
Fast
Delivery
Delivery
Technical Details
| Model | P1.8 |
| Pixel pitch | 1.8mm |
| Pixel configuration | 1R1G1B |
| Module resolution | 172*86 |
| Pixel Density | 288906Dot/㎡ |
| Module Dimension | 320mm*160mm*15mm |
| Cabinet size | 640W(mm)x480H(mm)/960mmx960mm |
| Cabinet Resolution(WXH) | 320X240 |
| Cabinet Pixel | 88,752 Dots |
| Pixel Density | 288906Dot/㎡ |
| Cabinet Construction | Die-casting aluminum/iron |
| Weight | 6.5 kg/pcs |
| Maintenance | Front-Access |
| Cabinet Max Power Consumption | ≤400W |
| Pixel Pitch | 1.8mm |
| Brightness | ≥800 nits |
| Contrast Ratio | 5000:1 |
| Color temperature | 2000-9300 K |
| Processing Depth | 16 bit |
| Driving method | Constant Current Drive |
| Driving IC | PWM-SS Energy-Saving Driving IC |
| Scan | 1/43 |
| Refresh Rate | ≥4200Hz |
| Frame frequency | ≥60Hz |
| LED Life Time | 100,000 Hours |
| Input Voltage | AC 200-240V |
| Frequency | 47-63 (Hz) |
| Max. Input power | 400 watts |
| Typical Input Power | 120 watts |
| Viewing angle (H/V) | Horizontal: 160, Vertical:160 |
| Best Viewing Distance | ≥2.5m |
| Max Power Consumption | ≤439 W/m² |
| Average Power Consumption | ≤200w/㎡ |
| Input | -2x HDMI, 1xSDI,1xDVI |
| Output | RJ45 |
| Computer System | WinXp/Vista/Win7/Win10/Win11 |
| Control Connectors | 1x Ethernet Port, 2x USB |
| Scaling Options | 3 scaling options are pixel-to-pixel, full screen and custom scaling |
| Presets | 10 Presets |
| Power Input | AC 200-240V |
