Brand
SKU: UBSL-0338

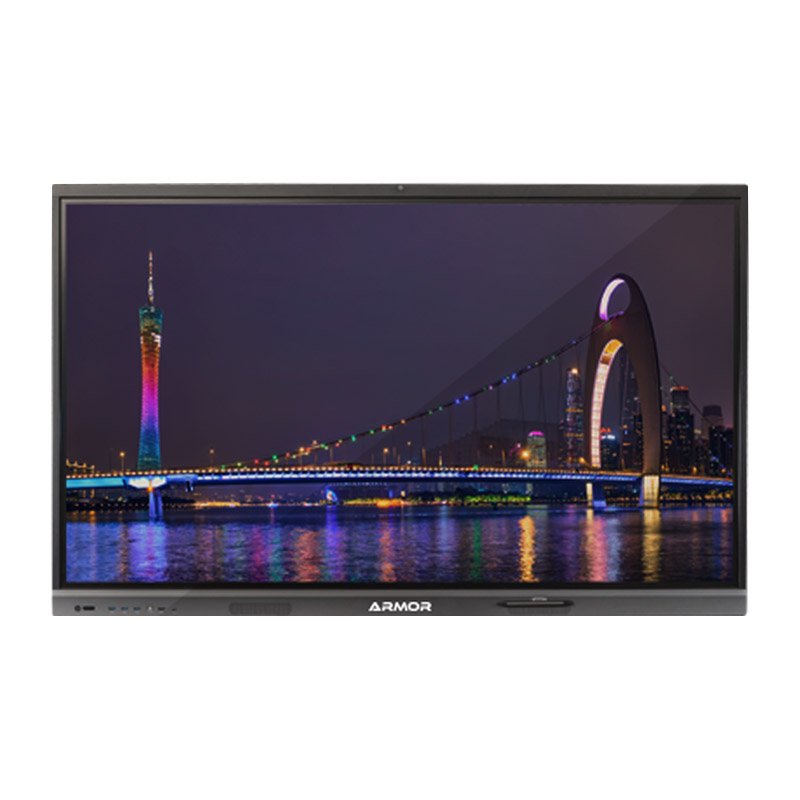

Armor ARM6505-EDU 65″ Interactive Flat Panel
Price
৳ 200,000
৳ 250,000
In Stock
Ready to ship
✔ Ultra HD 4K Display✔ 20-Point Multi-Touch✔ High-Performance Android OS✔ Built-in 4K Camera✔ Comprehensive Connectivity✔ Durable Anti-Glare Tempered Glass✔ Interactive Whiteboarding & Annotation✔ Energy Efficient & RoHS Compliant
Official
Warranty
Warranty
Fast
Delivery
Delivery
Technical Details
| Model | ARM6505-EDU |
| Diagonal Size | 65 Inches |
| Effective Display Area | 1428.48(H) x 803.52(V) |
| Display Ratio | 16:9 |
| Brightness | 450 nits |
| Contrast Ratio | 4000:1 |
| Backlight Type | DLED |
| Viewing Angle | 178° (V) / 178° (H) |
| Resolution | 3840(H) x 2160(V) |
| Audio Output Power | 8Ω / 16W * 2 |
| Panel Type | IPS 4K Panel |
| Refresh Frequency | 60Hz |
| Touch Technology | Infrared Multi-Touch Technology |
| Touch Points | 40 points touch |
| Drive | HID drive-free |
| Writing Surface | 4mm Ag anti-glare glass |
| Touch Sensor Mode | Finger, writing pen, hand with gloves, or other non-transparent touch-sensitive medium |
| Resolution | 32,768 x 32,768 |
| Communication Port | USB 2.0 |
| Min Recognition Dim | 2mm |
| Response Time | ≤6ms |
| Touch Accuracy | ±1mm |
| Anti-Interference | Incandescent lamp (220V, 100W), vertical distance 350mm above, the illumination intensity of the sun is up to 80,000 Lux |
| Calibration | Calibration-free |
| Touch Lifespan | More than 60 million touches in the same position |
| Power Supply Mode | USB 5.0V power supply |
| Glass Hardness | 9H |
| Surface Treatment | Haze 25%, Anti-glare treatment |
| Model | ARM6505-EDU, ARM7505-EDU, ARM8605-EDU |
| Android Frequency | 8-core ARM Cortex-A55 |
| System Version | Android 14 with Google Play support |
| Memory | DDR4 8GB |
| FLASH | 128GB |
| Wi-Fi | 2.4G |
| Transmission Screen Wi-Fi | 5G |
| Bluetooth | 5.0 |
| Sensors | Light Sensor (Automatic brightness adjustment) |
| Compliance & Certifications | FCC, CE, RoHS, IPX65 |
| Blue Light Reduction | Blue light care technology to protect eyes |
| Camera & Microphone | Built-in 48 million pixels and 8-way microphone array |
| Operating Temperature | 0°C - 40°C |
| Operating Humidity | 10% - 90% RH |
| Storage Temperature | -20°C - 60°C |
| Storage Humidity | 10% - 90% RH |
| Altitude | Below 5000 meters |
| LAN IN | 1 |
| HDMI 2.0 | 2 |
| RS-232 | 1 |
| USB 3.0 | N/A |
| VGA IN | 1 |
| Audio IN | N/A |
| DP IN | N/A |
| MIC IN | N/A |
| TF-card | 1 |
| USB 2.0 | 1 |
| Earphone | 1 |
| HDMI OUT | N/A |
| LAN OUT | N/A |
| Coaxial (RCA) | 1 |
| TOUCH OUT | 1 |
| USB 3.0 | 1 |
| HDMI 2.0 | 2 |
| USB TOUCH | 1 |
| Type-C | 1 (Power Only) |
| Accessories | Magnetic whiteboard pen x 2, Wall-mount bracket x 1 set, Power cord x 1, Remote control x 1, Wi-Fi antenna x 4 |
| Power Consumption | ≤210W |
| Standby Consumption | ≤0.5W |
| Lifetime | 50,000 hours |
| Power Supply | 100-240V, 50/60Hz |
| Dimensions (W x H x D) | 1485.2mm x 905.7mm x 88.3mm |
| VESA Hole Size | 4-M8 holes, 500mm x 400mm spacing |
| Net Weight | 37kg |
| Gross Weight | 45.75kg |
| Package Size (W x H x D) | 1600mm x 1030mm x 200mm |
