Brand
SKU: UBSL-0298

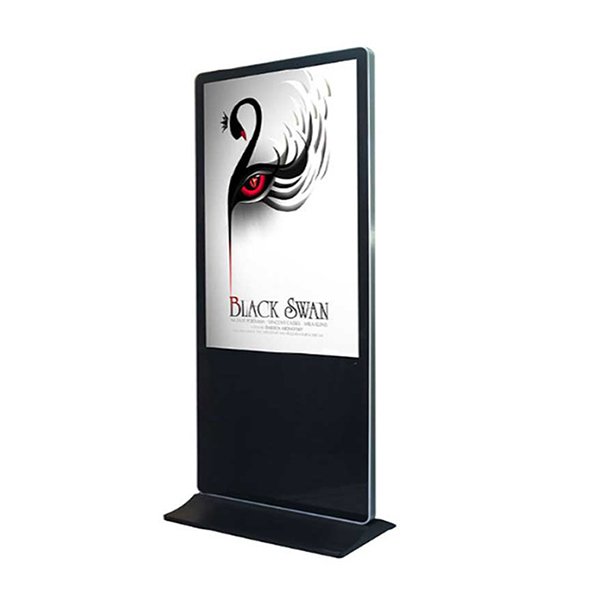

ARMOR ADS-AD550 Digital Signage
Price
Call for Price
In Stock
Ready to ship
Excellent visual effect, perfect for advertising and signage. Great design, strong housing and easy service access. Industrial grade paint, rust resistant with an easy surface to clean. Networking digital advertising software solutions available as option. Please ask your key account MGR for more in...
Official
Warranty
Warranty
Fast
Delivery
Delivery
Technical Details
| Country of Origin | Singapore |
| Model | ADS-AD550 |
| Panel Size | 55” inch |
| Panel | Commercial LED panel display |
| MAX. Resolutions | 3840*2160 |
| Active Screen Area | 1211*682mm (H×V) |
| Aspect Ratio | 16:9 |
| Viewing Angle | 178/178/178/178 (left/right/up/down) |
| Brightness | ≥700cd/m2 |
| Backlight Type | DLED |
| Color Depth | 1.07 (10-bit) |
| Frequency | 60HZ |
| Pixel Structure | RGB vertical stripe |
| CPU | Cortex-A53 Quad-core |
| RAM | 4GB |
| ROM | 32GB |
| Interface | DC-IN*1, HDMI-IN*1, RJ45*1, RJ25 Earphone*1, USB*1 |
| Video | Support formats in wmv, avi, flv, rm, rmvb, mpeg, ts, mp4, etc. |
| Image | Support formats in BMP, JPEG, PNG, GIF, etc. |
| Network | Support Ethernet, WIFI (Bluetooth for optional) |
| Timing on/off | Support customize the settings of the time for start and shutdown |
| Mouse/Keyboard | Support hot plugging |
| The Third Party’s Apps | Yes |
| Color | Black |
| Glass | ≥3.5mm explosion-proof tempered glass |
| VEST Size | 400*400mm |
| Dimension | 1265*736*73mm |
| N.W. | 23.85KG |
| G.W. | 26.17KG |
| Wall-mount Bracket | Universal landscape/portrait wall mount bracket |
| Anti-theft Design | Tighten screws to ensure anti-theft security |
| Installation | Wall-mount (mobile stand or ceiling mount for optional) |
| Input Voltage | AC100-240, 50/60Hz |
| Standby Power | ≤1W |
| Working Power | ≤75W |
| Working Environment | TEMP: ‐10℃~55℃ / Humidity: 10%RH~90%RH |
| Storage Environment | TEMP: ‐15℃~65℃ / Humidity: 10%RH~95%RH |
| Accessories | Power cable*1, WiFi antenna*1, remote control*1, key*1, Wall Mount Kit*1, maintenance card*1 |
