Apollo SKU: N/A

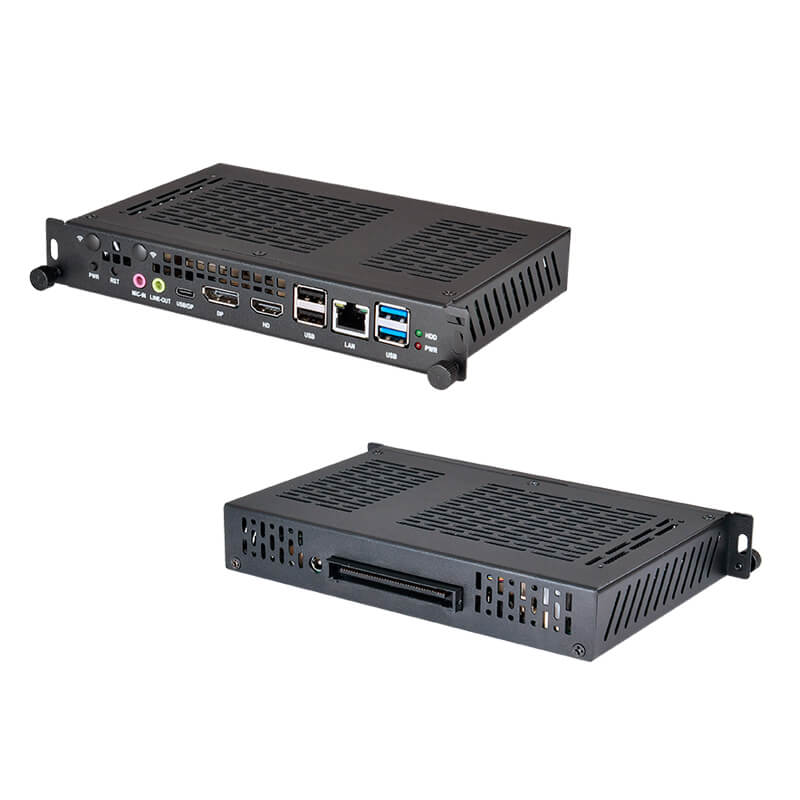

Apollo- i5/i7 13th gen OPSC-API5 / API7

Price

Call for Price
In Stock
Ready to ship
13th Gen Intel® Core™ Performance
Supports DDR4-3200 memory and M.2 NVMe SSD storage
High-Quality Graphics
Advanced Connectivity
Compact OPS Integration
Official
Warranty
Fast
Delivery

Technical Details

Product Model OPSC-API5 / API7
Processor Intel® Core™ i5 / i7 13th Gen
CPU Architecture 8 cores, 12 threads (4 Performance + 4 Efficiency cores, as provided)
Maximum Turbo Frequency Up to 4.4 GHz
Intel Smart Cache 12 MB
Base Power 15 W
Maximum Turbo Power 55 W
Memory Type DDR4 SO-DIMM, 260-pin
Memory Voltage 1.2 V
Memory Speed DDR4-3200
Memory Capacity Support 8 GB / 16 GB / 32 GB per module
Storage Interface M.2 2280 SSD, NVMe only
Storage Options 256 GB / 512 GB / 1 TB
Expansion Interface 1 × Mini PCIe
Graphics Intel® Iris® Xe Graphics
Maximum Dynamic Graphics Frequency Up to 1.2 GHz
Audio Onboard Realtek HD Audio Codec
Audio Channel Support 5.1-channel HD Audio
Audio Input/Output 1 × Audio Output, 1 × Microphone Input
Ethernet Integrated Realtek RTL8111 series LAN controller
Wireless Connectivity Wi-Fi 6 (802.11ax/ac), dual-band 2.4 GHz / 5 GHz
Bluetooth Bluetooth 5.2

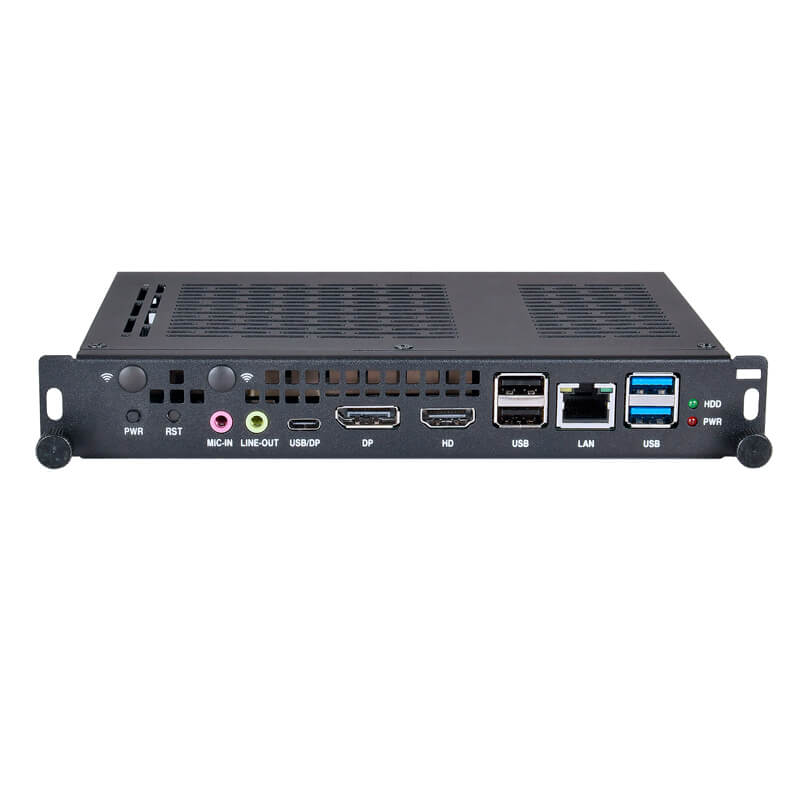

Front USB Ports 2 × USB 3.0, 4 × USB 2.0
USB Type-C 1 × USB-C
Wireless Interfaces 1 × Wi-Fi, 1 × Bluetooth
Status Indicator 1 × Status LED
Display Outputs 1 × HDMI, 1 × DisplayPort (DP)
Wi-Fi Antenna Connectors 2 × Wi-Fi Antennas
LAN Port 1 × LAN
Power Input 19 V DC
OPS Connector Standard 80-pin OPS connector
Chassis Color Black
Dimensions – Option 1 119 × 108 × 30 mm (L × W × H)
Dimensions – Option 2 195 × 108 × 30 mm (L × W × H)
Operating System Windows® 10, Windows® 11, and other operating systems
Operating Temperature −20°C to 55°C
Relative Humidity 5%–95%, non-condensing
