Brand
SKU: UBSL-0313

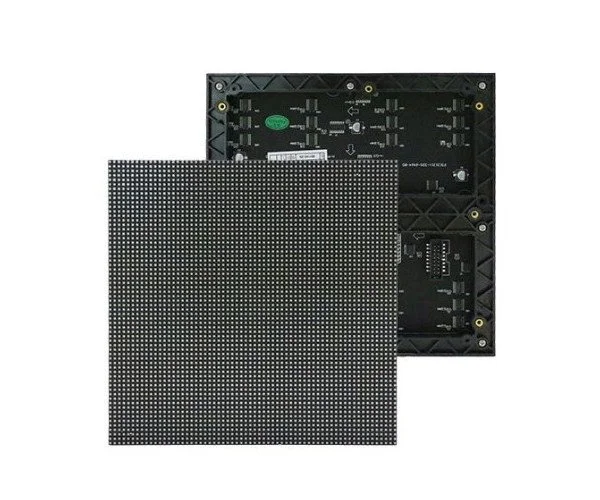

Armor P1.8 Indoor LED Video Wall
Price
Call for Price
In Stock
Ready to ship
The Armor P1.8 Indoor LED Video Wall is a high‑definition indoor LED display system with a 1.8 mm pixel pitch, delivering ultra‑clear visuals, vibrant colors, and smooth motion—ideal for corporate spaces, retail environments, events, and control rooms.
Official
Warranty
Warranty
Fast
Delivery
Delivery
Technical Details
| Model | P1.8 |
| Pixel pitch | 1.8mm |
| Pixel configuration | 1R1G1B |
| Module resolution | 172*86 |
| Pixel Density | 288906Dot/㎡ |
| Module Dimension | 320mm*160mm*15mm |
| Cabinet size | 640W(mm)x480H(mm)/960mmx960mm |
| Cabinet Resolution(WXH) | 320X240 |
| Cabinet Pixel | 88,752 Dots |
| Pixel Density | 288906Dot/㎡ |
| Cabinet Construction | Die-casting aluminum/iron |
| Weight | 6.5 kg/pcs |
| Maintenance | Front-Access |
| Cabinet Max Power Consumption | ≤400W |
| Pixel Pitch | 1.8mm |
| Brightness | ≥800 nits |
| Contrast Ratio | 5000:1 |
| Color temperature | 2000-9300 K |
| Processing Depth | 16 bit |
| Driving method | Constant Current Drive |
| Driving IC | PWM-SS Energy-Saving Driving IC |
| Scan | 1/43 |
| Refresh Rate | ≥4200Hz |
| Frame frequency | ≥60Hz |
| LED Life Time | 100,000 Hours |
| Input Voltage | AC 200-240V |
| Frequency | 47-63 (Hz) |
| Max. Input power | 400 watts |
| Typical Input Power | 120 watts |
| Viewing angle (H/V) | Horizontal: 160, Vertical:160 |
| Best Viewing Distance | ≥2.5m |
| Max Power Consumption | ≤439 W/m² |
| Average Power Consumption | ≤200w/㎡ |
| Input | -2x HDMI, 1xSDI,1xDVI |
| Output | RJ45 |
| Computer System | WinXp/Vista/Win7/Win10/Win11 |
| Control Connectors | 1x Ethernet Port, 2x USB |
| Scaling Options | 3 scaling options are pixel-to-pixel, full screen and custom scaling |
| Presets | 10 Presets |
| Power Input | AC 200-240V |
