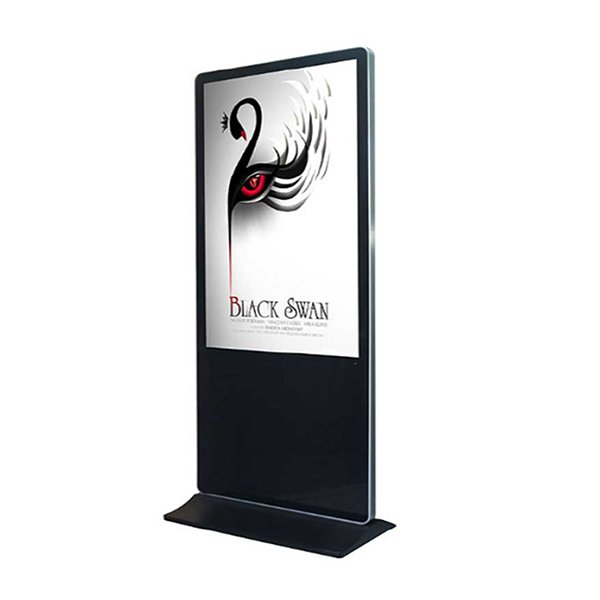

ARMOR ADS-AD550 Digital Signage
Price
Call for Price
In Stock
Ready to ship
The ARMOR ADS-AD550 is a high-resolution digital signage display designed for retail, corporate, and public environments. It delivers crisp visuals, dynamic content, and easy content management, making it perfect for advertising, announcements, and interactive displays.
Official
Warranty
Warranty
Fast
Delivery
Delivery
Technical Details
| Country of Origin | Singapore |
| Model | ADS-AD550 |
| Panel Size | 55” inch |
| Panel | Commercial LED panel display |
| MAX. Resolutions | 3840*2160 |
| Active Screen Area | 1211*682mm (H×V) |
| Aspect Ratio | 16:9 |
| Viewing Angle | 178/178/178/178 (left/right/up/down) |
| Brightness | ≥700cd/m2 |
| Backlight Type | DLED |
| Color Depth | 1.07 (10-bit) |
| Frequency | 60HZ |
| Pixel Structure | RGB vertical stripe |
| CPU | Cortex-A53 Quad-core |
| RAM | 4GB |
| ROM | 32GB |
| Interface | DC-IN*1, HDMI-IN*1, RJ45*1, RJ25 Earphone*1, USB*1 |
| Video | Support formats in wmv, avi, flv, rm, rmvb, mpeg, ts, mp4, etc. |
| Image | Support formats in BMP, JPEG, PNG, GIF, etc. |
| Network | Support Ethernet, WIFI (Bluetooth for optional) |
| Timing on/off | Support customize the settings of the time for start and shutdown |
| Mouse/Keyboard | Support hot plugging |
| The Third Party’s Apps | Yes |
| Color | Black |
| Glass | ≥3.5mm explosion-proof tempered glass |
| VEST Size | 400*400mm |
| Dimension | 1265*736*73mm |
| N.W. | 23.85KG |
| G.W. | 26.17KG |
| Wall-mount Bracket | Universal landscape/portrait wall mount bracket |
| Anti-theft Design | Tighten screws to ensure anti-theft security |
| Installation | Wall-mount (mobile stand or ceiling mount for optional) |
| Input Voltage | AC100-240, 50/60Hz |
| Standby Power | ≤1W |
| Working Power | ≤75W |
| Working Environment | TEMP: ‐10℃~55℃ / Humidity: 10%RH~90%RH |
| Storage Environment | TEMP: ‐15℃~65℃ / Humidity: 10%RH~95%RH |
| Accessories | Power cable*1, WiFi antenna*1, remote control*1, key*1, Wall Mount Kit*1, maintenance card*1 |
